详细资讯
*如有兴趣请洽高雄厂
|
规格: |

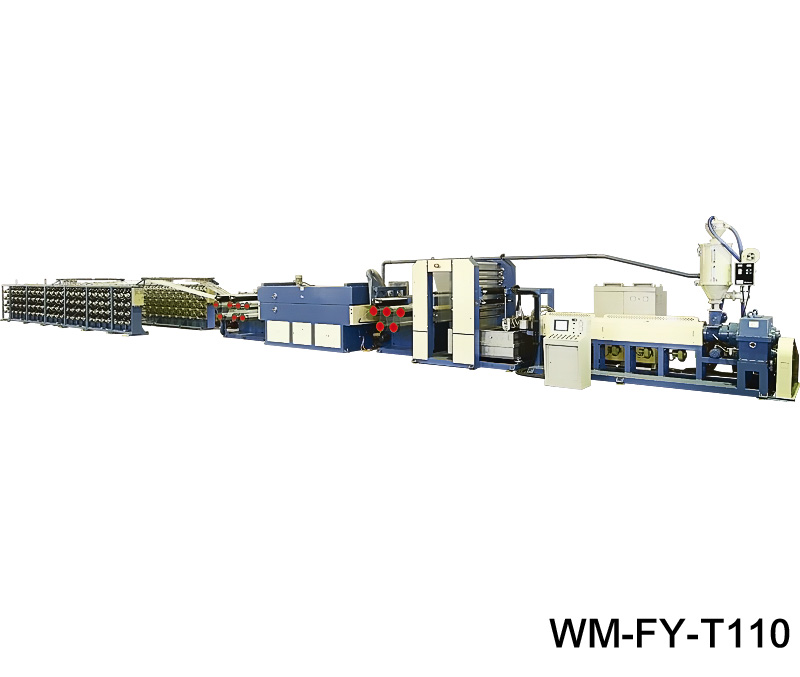

| MODEL | WM-FY-T110 | WM-FY-T130 | |
|---|---|---|---|
| EXTRUDER | SCREW DIAMETER | ψ110 mm | ψ130 mm |
| SCREW ROTATION | 10-100 rpm | ||
| L/D RATIO | 32/1 | ||
| DRIVING MOTER | 100 HP | 175 HP | |
| CONTROL SYSTEM | SYNCHRONOUS CONTROL WITH INVERTER | ||
| AUTO THERMO-CONTROL | 8 ZONES | 10 ZONES | |
| HEATING CAPACITY | 52 KW | 68 KW | |
| COOLONG BLOWER SYSTEM | 1/8 HP × 4 PCS | 1/8 HP × 5 PCS | |
| EXTRUSION OUTPUT | 250 KG/HR | 400 KG/HR | |
| VACUUM AUTO LOADER | 2 HP | 3 HP | |
| HOPPER DRYER | CAP. 50 KG | CAP. 100 KG | |
| FILTER STYLE | AUTO SCREEN CHANGE SYSTEM | ||
| T-DIE | DIE WIDTH | 1050 mm | 1400 mm |
| FILM WIDTH | 950 mm | 1270 mm | |
| DIE GAP | 0.6 mm | ||
| AUTO THERMO-CONTROL | 5 ZONES | ||
| HEATING CAPACITY | 18 KW | 22 KW | |
| QUENCH UNIT | SUCTION BLOWER | 7.5 HP | |
| DRIVING MOTER | 2 HP | 3 HP | |
| CONTROL SYSTEM | SYNCHRONOUS CONTROL WITH INVERTER | ||
| COOLING TOWER CAPACITY | 30 TON | 50 TON | |
| WATER CHILLER | MODEL | KT-750 | KT-1500 |
| COMPRESSOR HORSEPOWER | 7.5 HP | 15 HP | |
| REFRIGERATING ENERGY | 23866 KCAL/H | 46623 KCAL/H | |
| REFRIGERATING CAP | 94700 BTU/H | 185000 BTU/H | |
| WATER PUMP | 2 HP | ||
| SLITTING UNIT | SLITTING KNIFE | 5-WAY RAZOR BLADES | |
| NUMBER OF SLITTING UNIT | 5.6 mm THICKNESS × 1 SET + 6.7 mm THICKNESS × 1SET | ||
| MOVING OF SLITTING | 25 mm REMOVABLE(L<->R) | ||
| TAKE-UP UNIT | QUANTITY OF ROLLER | 5 PCS | |
| DRIVING MOTER | 5 HP | 7.5 HP | |
| CONTROL SYSTEM | SYNCHRONOUS CONTROL WITH INVERTER | ||
| LINE SPEED | 10-50 M/MIN | ||
| WASTE YARN COLLECTOR | 5 HP | 5 HP | |
| RECLAIMING SYSTEM | CRUSHER MOTER | 1 HP | |
| CONVEYING BLOWER | 2 HP | ||
| CHIPS DRIVING MOTER | 1/2 HP | ||
| STRETCHING OVEN | STRETCHING METHOD | SINGLE LAYER STYLE HOT AIR CIRCULATION | |
| BLOWER | 5 HP × 2 SETS | 7.5 HP × 2 SETS | |
| HEATING CAPACITY | 56 KW | 68 KW | |
| STRETCHING & ANNEALING ROLLER | QUANTITY OF STRETCHING | 5 PCS | |
| DRIVING MOTER | 10 HP | 15 HP | |
| QUANTITY OF ANNEALING ROLLER | 2 PCS WITH CHILL WATER CIRCULATION | ||
| DRIVING MOTER | 5 HP | 5 HP | |
| LINE SPEED | PRODUCING SPEED 50-270 M/MIN | ||
| CONTROL SYSTEM | SYNCHRONOUS CONTROL WITH INVERTER | ||
| WASTE YARN COLLECTOR | 5 HP | 7.5 HP | |
| STATIC ELIMINATION DEVICE | 1 SET | ||
| TAKE-UP WINDER | TENSION CONTROL | MAGNETIC DISK STYLE | |
| QUANTITY OF SPINDLES | 168 PCS | 224 PCS | |
| DRIVING MOTER | 1/4 HP | ||
| WINDING SPEED | TYPE : FW-270 50-270 M/MIN | ||
| LENGTH OF TRAVERSE | 203 mm | ||
| BOOBBIN SIZE | 35 mm(ID) × 39 mm(OD) × 230 mm(L) | ||
| CONTROL PANEL | CONCENTRATION STYLE OR MODULARIZED STYLE | ||
| PNEUMATIC | AIR COMPRESSOR | 10 HP | 15 HP |
| INSTALLATION | TOTAL POWER REQUIRED | 278 KW | 390 KW |
| POWER CONSUMPTION | 146 KW | 228 KW | |
| MACHINE WEIGHT(TON) | 29 TON | 40 TON | |
| FLOOR SPACE(L × W × H) | 33 × 5.5 × 3 M | 38 × 5.6 × 3.5 M | |
|
TAKE UP WINDER FW-270 |
|
|
AUTO SCREEN CHANGE FILTER |
|
|
SIDE YARN RECLAIMING SYSTEM |
|
|
T-DIE |
