Features

This machine includes nine (9) units become a complete set of machinery for integral operation. First From single PP/PE laminated cloth or sandwich PP-Paper laminated cloth-printing-join-pasting-perforating-forming-rotary cutting-convey-counting etc. continue operation. It able to and chemical product packing bags.

Specification

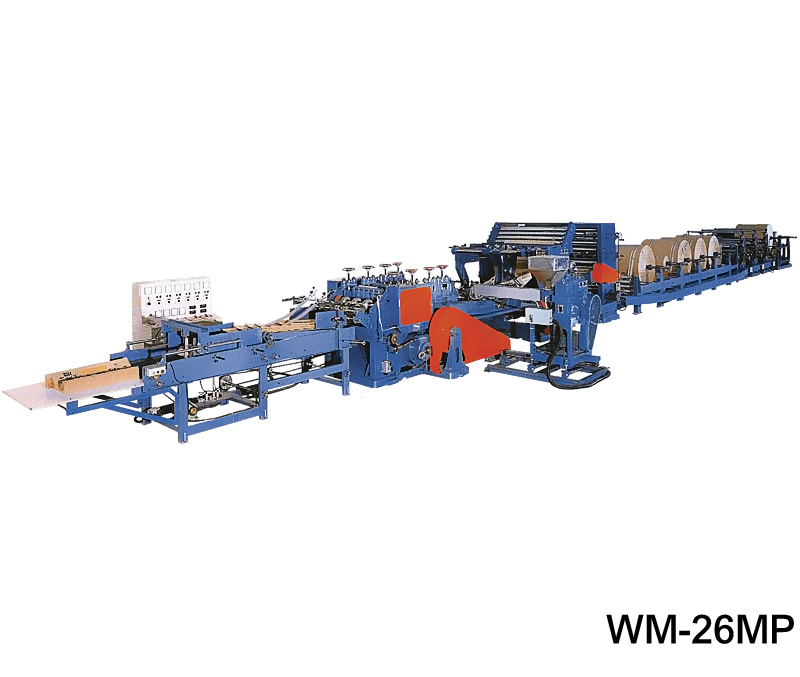

Model	WM-26MP
Capacity	max. 160 tubes/min.
Cutting Length(CL)	508~1,092 m/m(20"~43")
Tube Width(gusseted) (TW)	368~495 m/m(14 1/2"~19 1/2")
Tube Width(flat) (TW)	368~597 m/m(14 1/2"~23 1/2")
Gusset Width(GW)	63~152 m/m(2 1/2"~6")
Valve Extension Height(VH)	25~63 m/m(1"~2 1/2")
Valve Extension Width(VH)	57~76 m/m(2 1/4"~3")
Number of Ply	upto 6 Plies
Paper Width	Max. 1,220 m/m(48")
Paper Roll Diameter	Max. 1,300 m/m(51")
No. of Printing Color	1~3 colors at your option.
Machine Dimension	L26.7m x W4.2m x H2.0m
Net Weight	Approx. 17.5 tons
Gross Weight	Approx. 20 tons
Measurements	Approx. 2,500 cft

Driving Notor Data

Model	WM-26MP
Main Motor	20HP with Inverter
EPC driving Motor	1/2HPx1set
Printing driving Motor	1/2HP+1/8HP colour
Pump of Cross Pasting Unit	1/2HP
Pump of Paper Pasting Unit	1/2HP
Driving Motor of Conveyer	1HP
Extruder Main motor	7 1/2HP with Inverter
Heating Capacity	9.85KW

TYPE OF TUBE

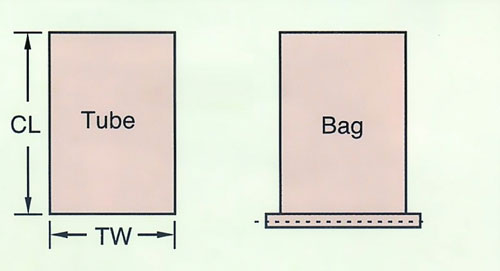

(1)Fiat Open Mouth Tube.

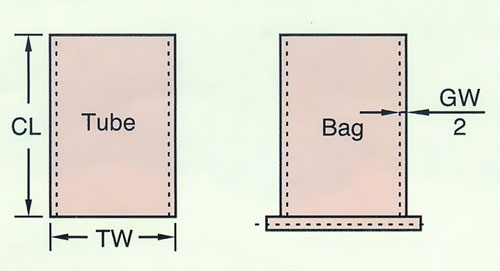

(2)Gusset Open Mouth Tube.

(3)Gusset Valve Notch Cut Tube.
